TYPE
|

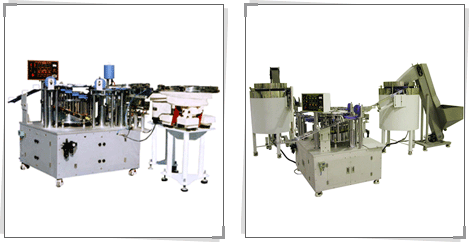

Vibration Parts-Feeder
|
Centrifugal Parts-Feeder
|
| ..DIMENSION(mm) |
..3,000L x 2,200W x 900H
|
..4,000L x 2,700W x 1,800H |
..WEIGHT
|
..About 1,500KGS
|
..About 1,900Kgs |
..ELECTRIC POWER
|
..AC 2P x 220V x 1.5Kw
x 50/60Hz |
..4.5Kw |
..PRODUCTION CAPACITY
..(5ml) |
..About
15,000 Pcs / H |
..About
18,000pcs / H |
..AIR CONSUMPTION
|
..600 L/Min |
| ..MAIN DRIVING MOTOR |
..D.C.Motor 1 HP |
..CONVEYER MOTOR
|
..Geared Motor 0.2Kw |
| ..DRUM MATERIAL |
..M.C.Nylon |
..FRAME MATERIAL
|
..AL 6061 |
..NO. OF WORKERS
|
..2 Person |
| ..MAIN CONTROL SYSTEM |
..Electronic Control Circuit
with Programmable Logic Controller |
|
|
|
|
