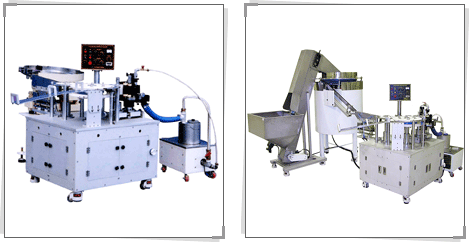

TYPE
|
Vibration Parts-Feeder
|
Centrifugal Parts-Feeder
|
| ..DIMENSION(mm) |
..1,600L x 1,700W x 800H
|
..2,020L x 2,260W x 1,700H |
..WEIGHT
|
..About 400KGS
|
..About 600Kgs |
..ELECTRIC POWER
|
..AC 2P x 220V x 1.5Kw x 50/60Hz |
..2Kw |
| ..AIR CONSUMPTION |
..150 L/Min. |
..PRODUCTION CAPACITY
|
..About 15,000PCS / H (5CC) |
| ..MAIN DRIVING MOTOR |
..D.C.Motor 1 HP |
..CONVEYER MOTOR
|
..Geared Motor 0.2Kw |
| ..INK SUPPLY TYPE |
..Gear Pump Type (1/2 HP) |
..FRAME MATERIAL
|
..AL 6061 |
..NO. OF WORKERS
|
..1 Person |
|
|
|
|
